Details

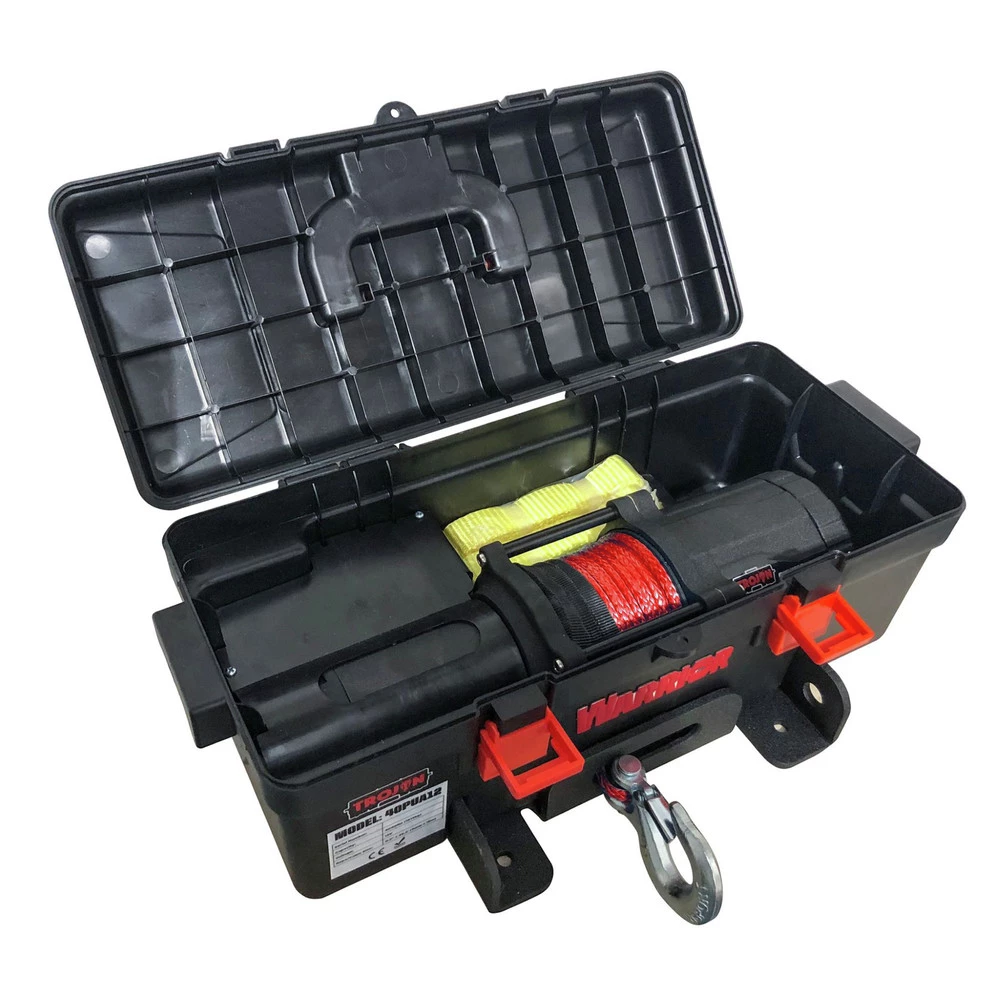

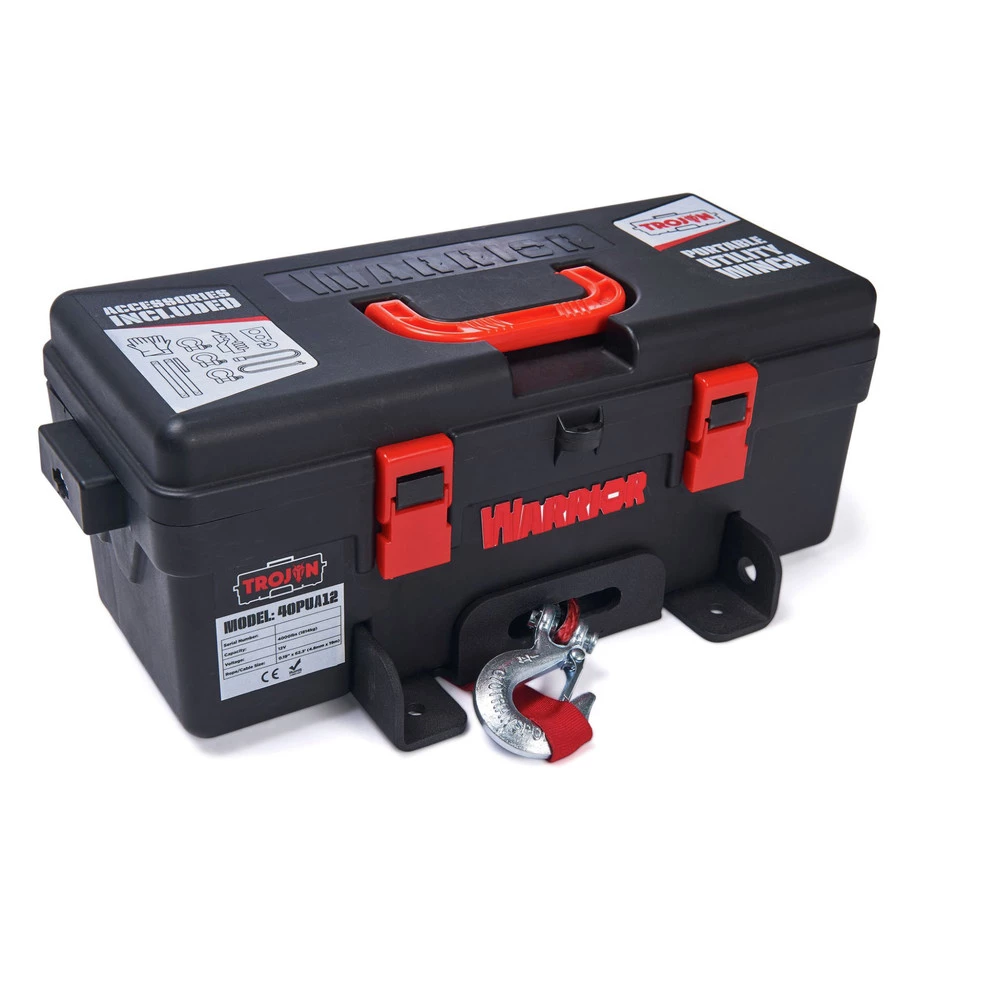

The Trojan Portable Utility Winch is a complete winching solution in a convenient kit that features a 4000 lbs. rated line pull winch on a unique powder coated winch platform, all in a compact, easy to carry composite tool box. The kit is easy to store, use, and repack. Completely portable, the Trojan requires no installation and does not require a winch mount; however, it can be permanently mounted on a trailer and be used as a utility winch if desired.
Features:
- 4000 lbs. Pulling Power
- Built in 1/4 in. hardened steel plate
- Can be permanently mounted

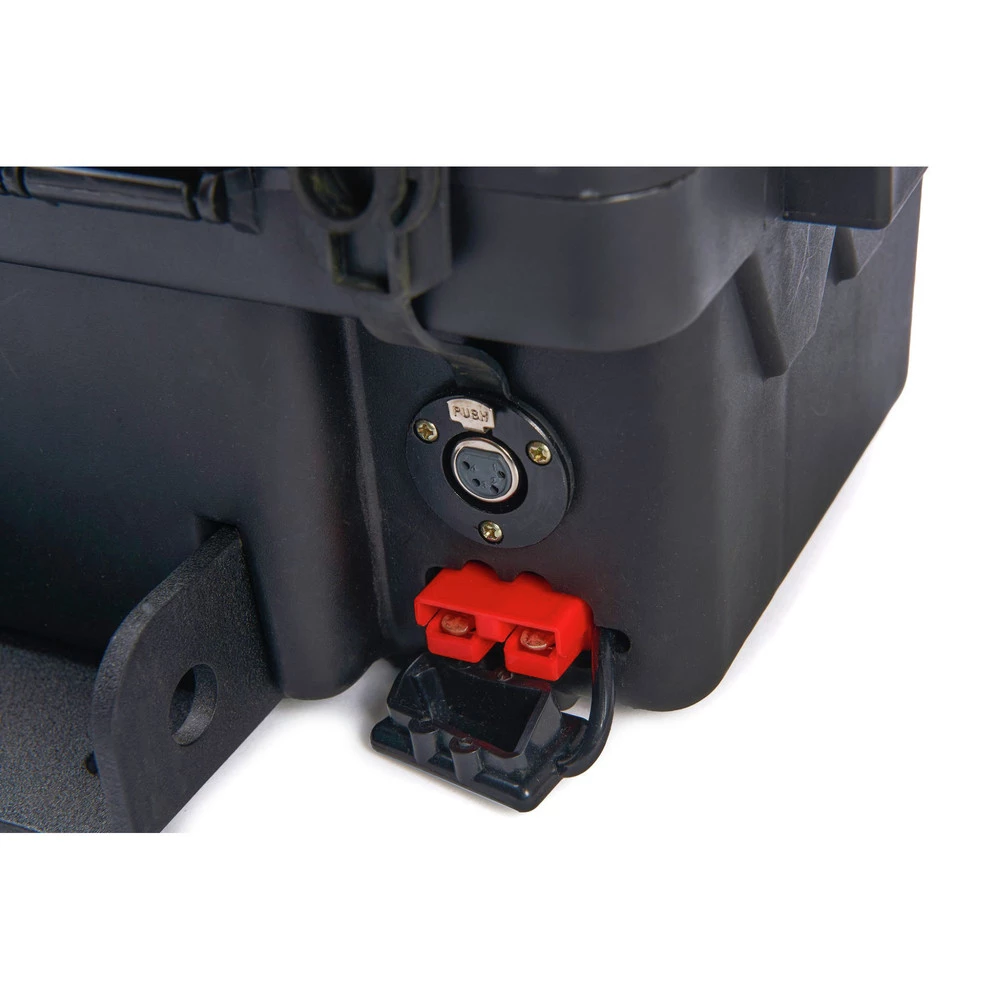

- Quick plug and play functionality

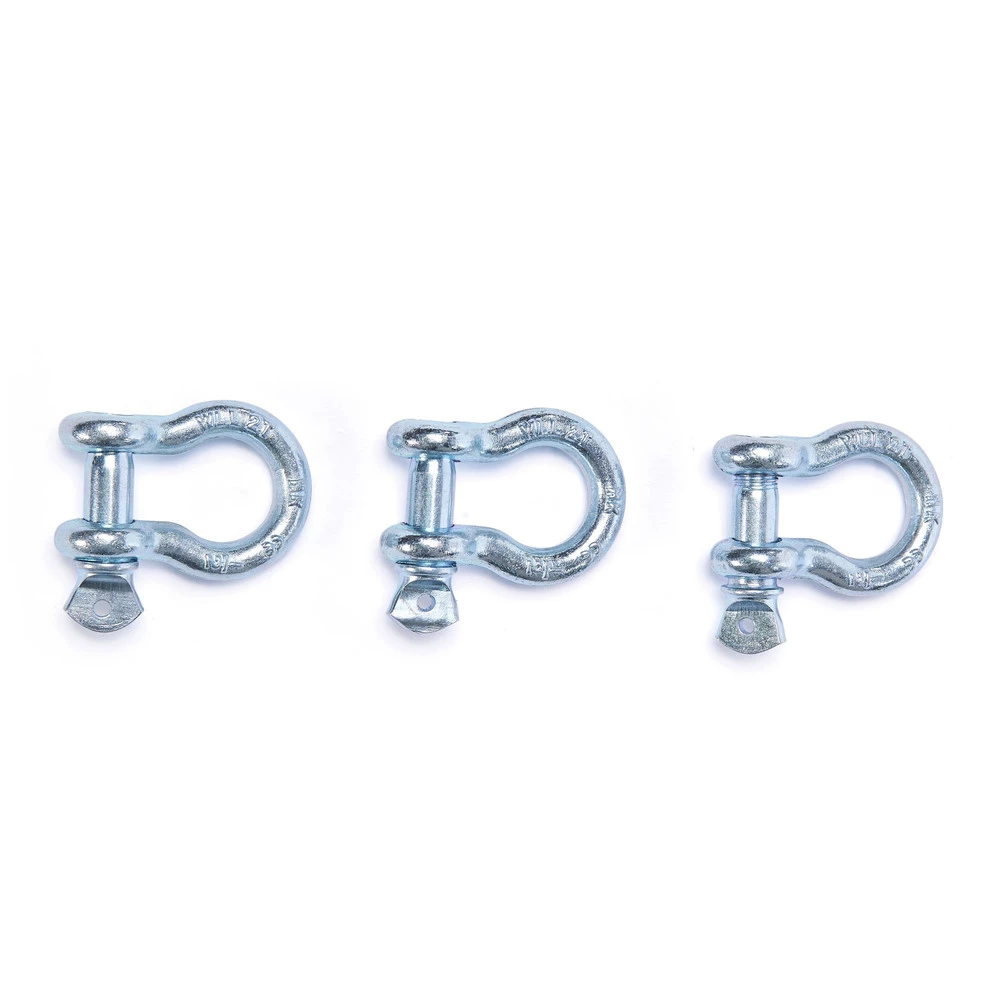

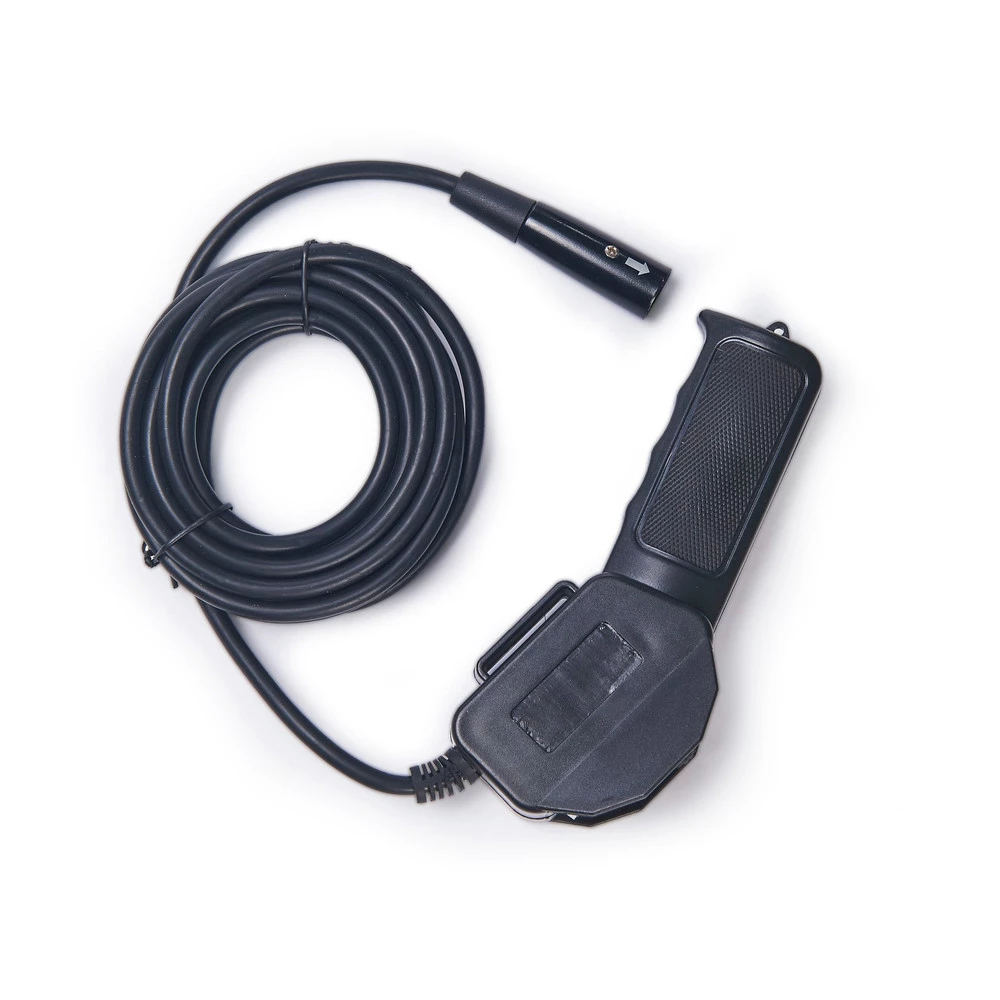

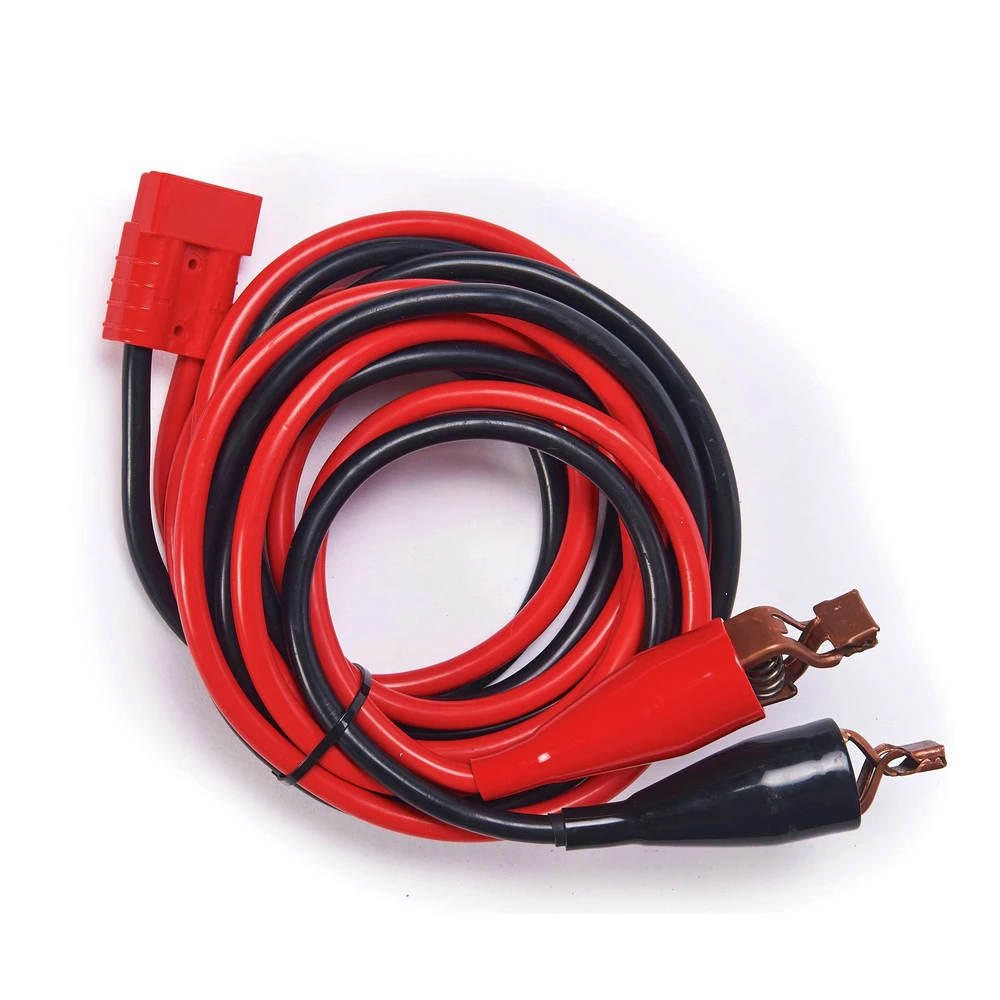

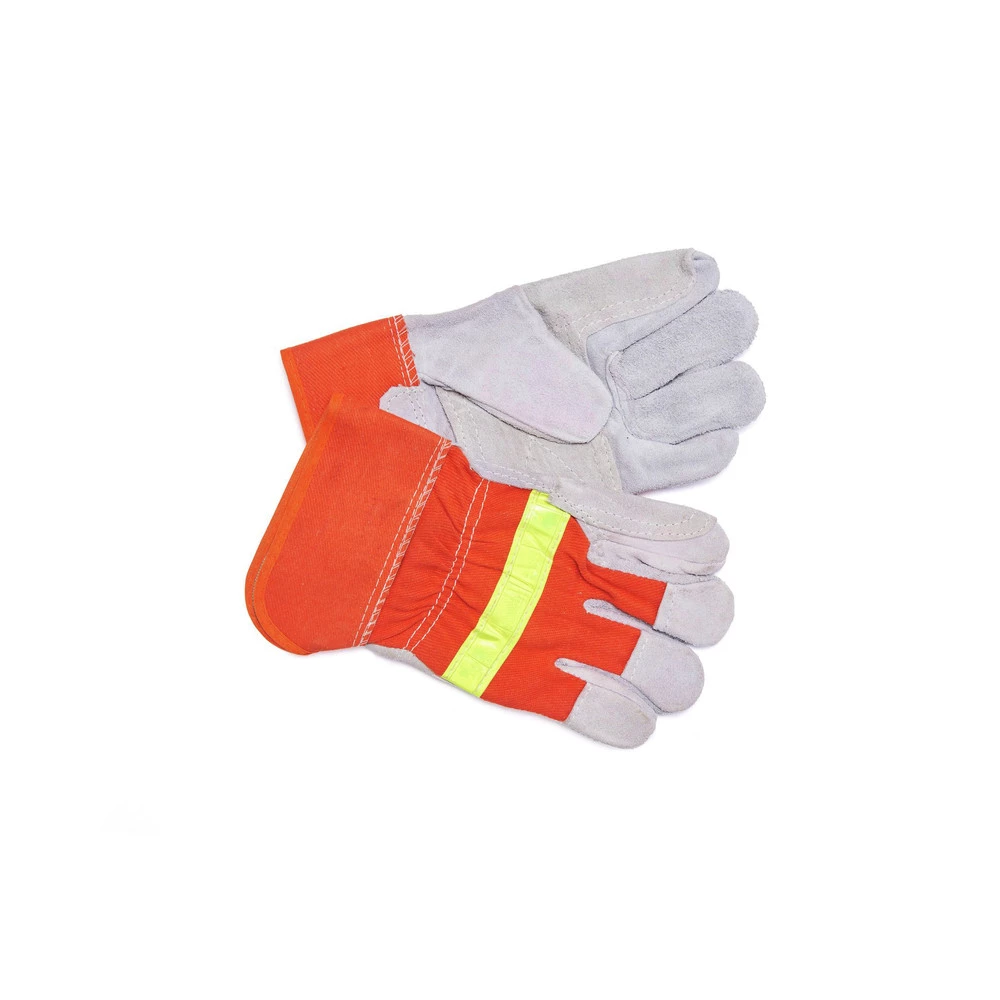

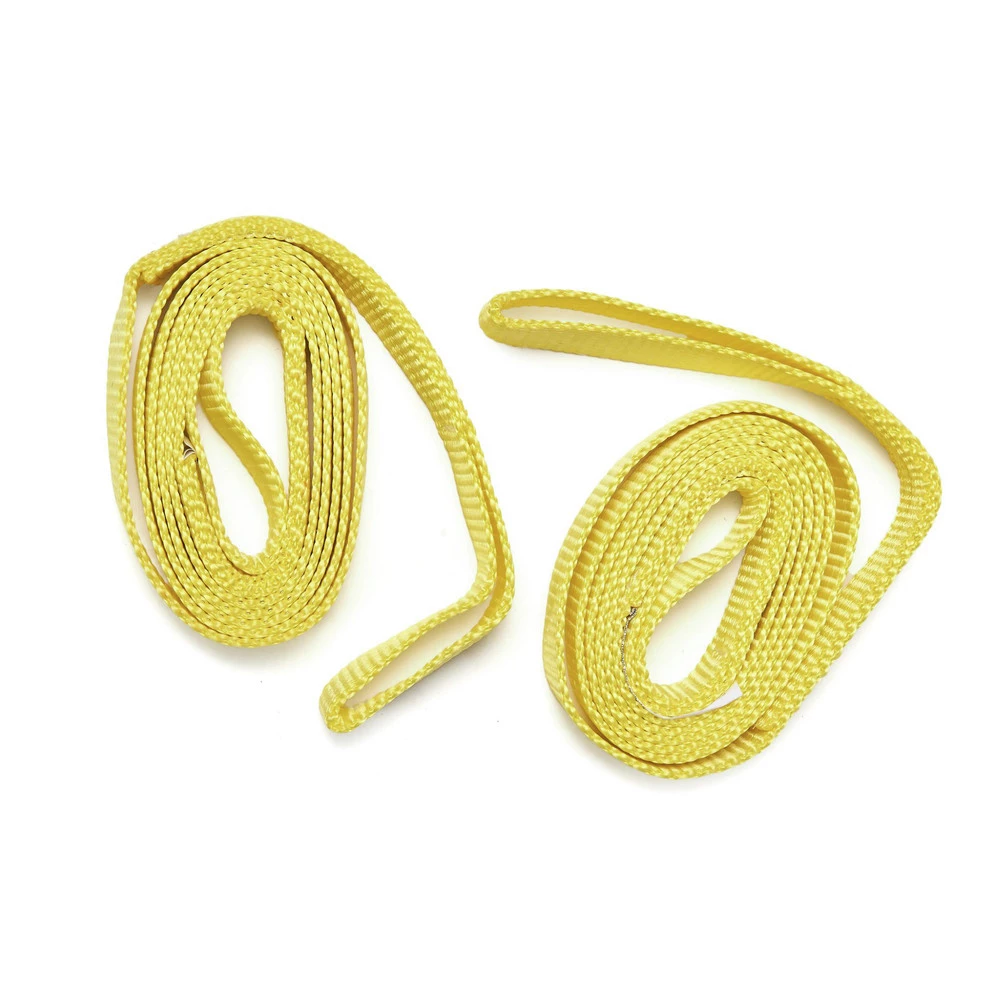

- Included with the Trojan: Quick Connect Cord with Alligator Clips, Heavy Duty Leather Palmed Winch Gloves, 6000 lbs. Pulley Block, 3.6m (12 ft.) Hand Remote, (3) 20000 lbs. D-shackles, (2) 8 ft. Heavy Duty Straps Rated 8000 lbs.
- Rated Line Pull: 4000 lbs. (1814 kg.); Motor at 12V: 2.4kW / 3.2 HP; Gearing: 166:1; Drum Size – Dia x L: 50.4 mm x 82 mm (1.98 in. x 3.2 in.); Cable – Dia x L: 5.4 mm x 12.8 m (0.2 in. x 42 ft.); Dimensions: 506 mm x 304.5 mm x 192.2 mm (19.9 in. x 12 in. x 7.6 in.); Mounting Pattern: 210 mm x 234 mm (8.3 in. x 9.2 in.); Weight (kg): 20.5 kg. (45.2 lbs.)
- Layer of Rope/Cable, Line Pull: lbs. (kg.), Rope on drum ft. (m): 1, 4000 (1814), 8.5 (2.6); 2, 3351 (1520), 18.7 (5.7); 3, 2883 (1307), 29.8 (9.1); 4, 2530 (1147), 42 (12.8)
- Line Pull (lbs. / kg.), Line Speed at 12V ft./min. (m/min.), Amp Draw at 12V: 0, 14.4 (4.4), 28; 1000 (454), 9.8 (3), 80; 2500 (1135), 7.2 (2.2), 150; 4000 (1814), 4.9 (1.5), 190
- Note: Slight color variations may occur from images shown
What’s Included:
- Warrior Trojan 4000 lbs. Capacity Portable Utility Winch with Synthetic Rope – 40PUA12
- Included with the Trojan: Quick Connect Cord with Alligator Clips, Heavy Duty Leather Palmed Winch Gloves, 6000 lbs. Pulley Block, 3.6m (12 ft.) Hand Remote, (3) 20000 lbs. D-shackles, (2) 8 ft. Heavy Duty Straps Rated 8000 lbs.
| Cable Length | 49.2 ft |
|---|---|
| Weight Capacity | 4000 lbs |
| Horsepower | 3.2 |
| Voltage | 12V |
| Cable Diameter | 0.19 in |
| Length | 19.9 in. |
| Width | 12 in. |
| Height | 7.6 in. |
| Weight | 41.9 lbs. |
| Warranty Term | 1 Year |
